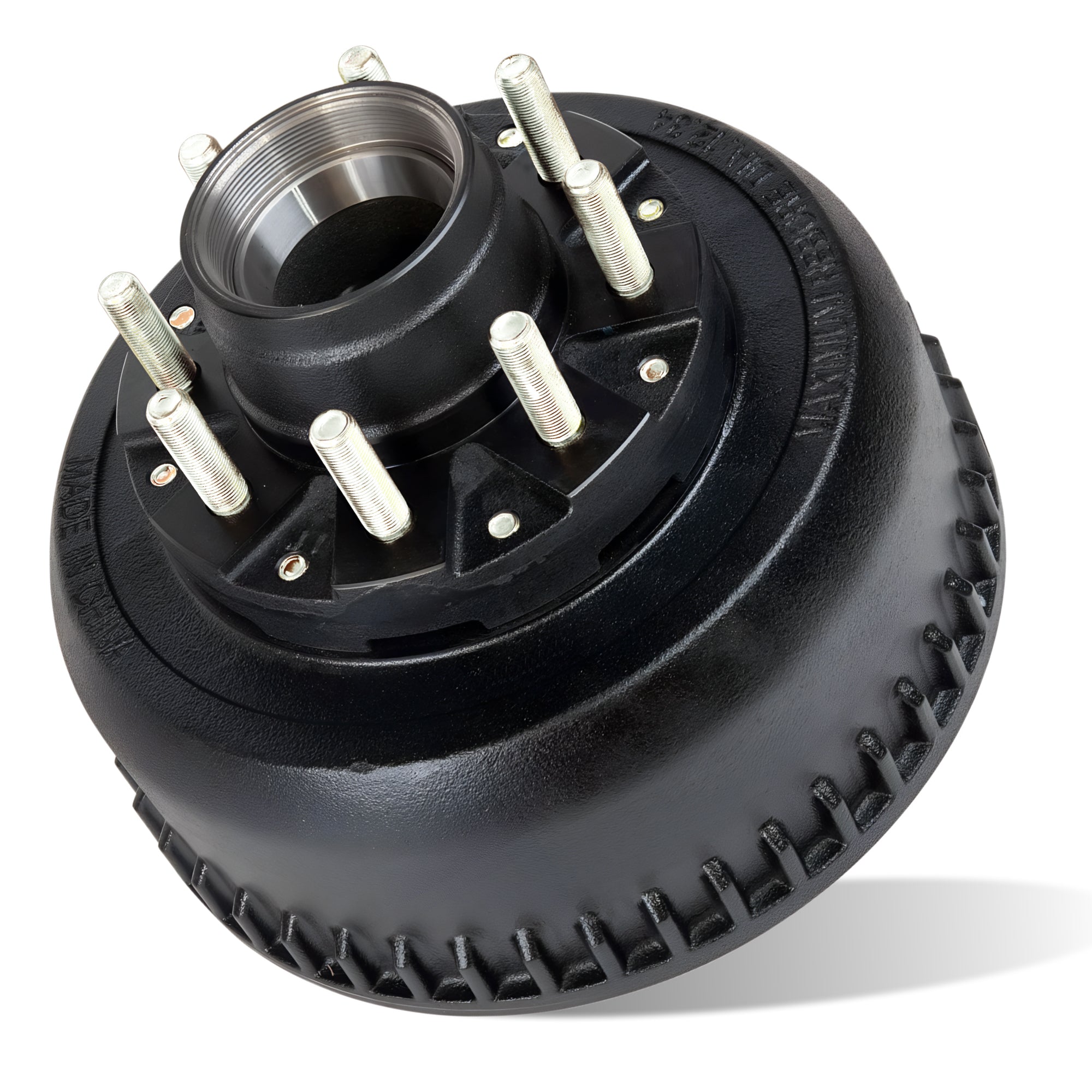

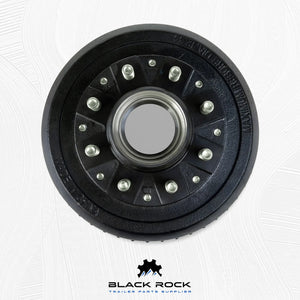

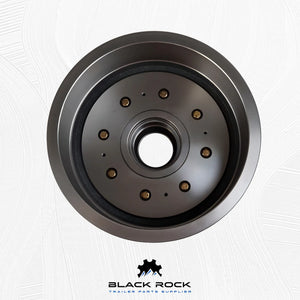

Trailer Brake Hub Drum for 9000-10000 Lbs Axle -8 Lug (New Style)

New Trailer Brake Drums Specification:

• 1 x 9-10K Trailer Axle Hub/Drum – 8x6.5 Bolt Pattern (Dexter General Duty, New Style)
• 1 x 25520 Outer Race (3.265" O.D., Pre-Pressed in Hub)
• 1 x 382A Inner Race (3.813" O.D., Pre-Pressed in Hub)
• Compatible Bearings: 25580 (1.75" ID) and 387A (1.25" OD) (sold separately)
• 5/8" Wheel Studs
• Designed for 9,000 lb & 10,000 lb General Duty Axles Manufactured After May 2013
• Dexter Compatible

Features:

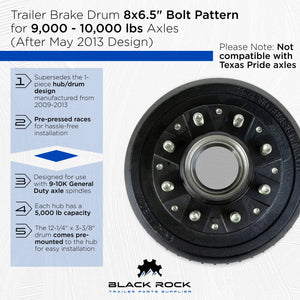

• Hub & Drum with 8x6.5" Bolt Pattern for 9,000 lb & 10,000 lb General Duty Axles (Manufactured May 2013-Present)
• Supersedes the 1-piece hub/drum design manufactured from 2009-2013
• Pre-pressed races for hassle-free installation
• Oil seal, bearings, oil cap, wheel nuts, and retaining ring sold separately
• Designed for use with 9-10K General Duty axle spindles
• Each hub has a 5,000 lb capacity

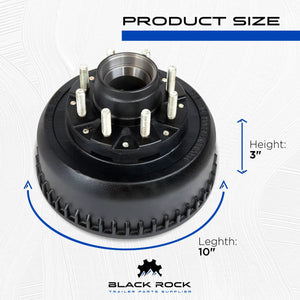

• The 12-1/4" x 3-3/8" drum comes pre-mounted to the hub for easy installation
• Spindle nut and washer sold separately
• Note: Not compatible with Texas Pride axles
